Compact weather proof outdoor type condensing unit
200-250 V, single phase, 50 Hz. AC supply [up to 30000 BTU/HR]
Overview
OUTDOOR UNIT / CONDENSING UNIT
(1). Type : Compact weather proof outdoor type condensing unit
(2). Compressor : Hermitically sealed reciprocating / rotary compressor.
(3). Refrigerant : Internationally accepted & recommended and most commonly used gas (CFC free)
(4). Blower motor : Well balanced type direct driven centrifugal type blower fan
(5). Power supply :
(5.1). 200-250 V, single phase, 50 Hz. AC supply [up to 30000 BTU/HR]
(5.2). 380-440 V 3-phase, 50 Hz. AC supply [above 30000 BTU/HR]
(6). Condensing pipe / coil : Made of copper
(7). EER/COP : For upto 60000 BTU/HR EER should be minimum 9.23 (BTU/HR)/WATT and COP Should be minimum 2.70 (W/W) For above 60000 BTU/HR EER should be minimum 10.5 (BTU/HR)/WATT and COP should be minimum=3.08 (W/W)
(8). Others features :
(8.1). Well balanced in all respect having interlock with the fan coil unit.
(8.2). Compressor dully equipped with vibration isolator, thermostatic & overload controls, magnetic contactors and all other standard accessories complete.
(8.3). Refrigerant copper pipe [From outdoor to indoor unit] with thermal insulation, refrigerant charging arrangement etc.[ Minm length10 mtr.]
(8.4). Reqd. size PVC insulated & sheathed cable with ECC through water grade PVC pipe from outdoor to indoor unit.
(8.5) Sound level : maximum 65 dB(A) at 1 meter

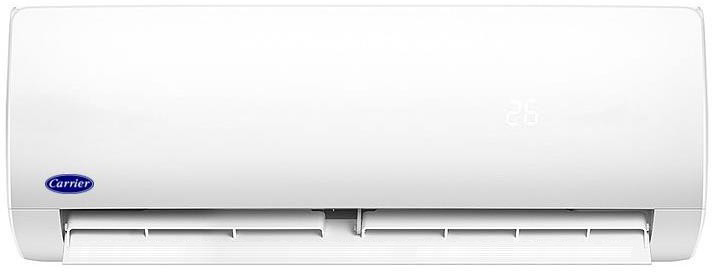

INDOOR UNIT / FAN COIL UNIT Features :
(1). Direct expansion system fan coil unit with well balanced direct driven centrifugal type fan.
(2). Fancy & adjustable air circulating louver grill, removable & washable type filter .
(3). Condensing water drain out PVC flexible pipe with necessary insulation
(4). Thermostatic switch and remote control switch.
(5). Sound level : maximum 44 dB(A) at 1 meter
California residents please see Proposition 65
ENERGY STAR® certified. Up to 19 SEER2 and up to 13 EER2 for premium energy savings.
Premium comfort features for more precise temperature control and fewer temperature swings.
The five-stage variable-speed compressor and Ideal Humidity System™ Technology offers excellent humidity control. Can operate at lower speeds for longer times extracting more humidity from your indoor air.
The five-stage variable-speed compressor and Silencer System II™ components that reduce airflow and vibration provides extremely quiet operation.
Available in various sizes that can accommodate most homes. Your Carrier expert will recommend the appropriate model to fit your needs.
Upon timely registration, on eligible equipment select either a 10-year parts only limited warranty or a 5-year parts, plus a 3-year labor limited warranty.1 Learn More.
A galvanized steel cabinet, louvered coil guard and baked-on powder paint provide protection against dings, dents and weather-based threats.
